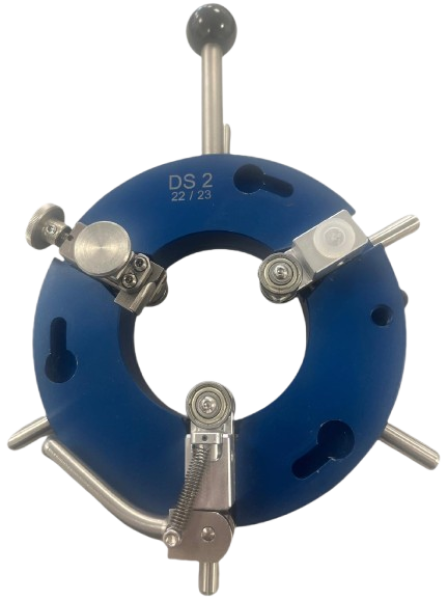

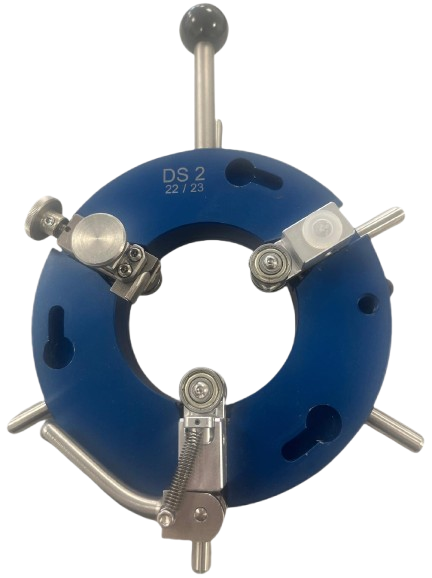

GB-DS2-EVO
GB-DS2-EVO
Peeling of bonded semi-con layer- With ball bearings
- Spring-loaded guide to compensate ovality
- Fine adjustment of the cutting depth
- Optionally operable via drive unit
Scope of delivery
- Peeling tool
- Manual instruction
Item descriptions
| Description | GBZ code | Item | |
|
GB-DS2-EVO | 44405 | .png) |
|
GB-DS-101 | 12339 | .png) |
|
GB-ASL20-S9/2 | 12206 | .png) |
|
GB-DM20-BOX |
17732 | .png) |
Alternatively Accessories
| Bezeichnung | GBZ code | Item | |
|
GB-DS2-DRIVE | 44995 |  |
|
GB-DS-DRIVE-BOX |
42770 | .png) |
Technical data
| Cable diameter | mm | 34 - 60 |
| Cutting depth | mm | 1,5 |
| Cutting width | mm | 5 |
| Feed | fixed | |
| Distance to remaining sheath | mm | 24 |
Dimensions & weight
| Radial space requirement | mm | 150 |
| Dimensions | mm | 280 x 180 x 85 |
| Weight | kg | 1,3 |
Tool set
| GB-DM30-SET | Item: 37475 | .jpg) |
Enthält:
| Sheath cutter | GB-M30 |
| Peeling tool | GB-DS2 |
| Chamfering tool | GB-KG05-5 |
